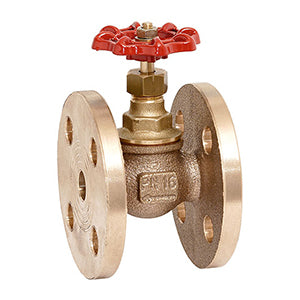

GLOBE VALVE - Flange drill PN16 (Copy)

The Globe Valve is a precision flow-control valve designed for accurate throttling, regulation, and shut-off of fluid in piping systems. With a linear motion disc mounted on a stem and seating against a stationary ring, globe valves provide excellent control characteristics and tight shut-off, making them ideal for applications where flow modulation and system stability are priorities.

🔧 Key Features

Linear flow control design — allows fine-tuned adjustment of fluid flow
Robust bronze/brass construction — corrosion-resistant and durable for marine, plumbing, and industrial environments
Handwheel operation — intuitive control with smooth opening and closing
Multiple connection options — threaded (F/F), flanged, or solder ends depending on the model
Reliable sealing — minimizes leakage and enhances system efficiency

⚙️ How It Works

Unlike ball or gate valves — which are predominantly on/off devices — the globe valve uses a movable plug (disc) that advances toward or away from the stationary seat to regulate flow. Turning the handwheel raises or lowers the disc, adjusting flow rate with precision and allowing gradual changes without shock or turbulence.

⚓ Common Applications

Globe valves are widely used in situations requiring dependable flow regulation, such as:

Marine systems — cooling circuits, freshwater distribution, and seawater services
Industrial and process piping — flow control of water, steam, and other fluids
HVAC and heating systems — balancing and throttling duties
Plumbing installations — pressure and flow management

💡 Why Use a Globe Valve?

When precise control over flow rate and pressure is important, globe valves outperform many other valve types. Their design offers good shut-off capability along with superior throttling characteristics, making them a go-to choice for applications that demand accurate regulation, reliability, and durability.
