Balluff - BMF00A4 Cylinder Magnetic Field Sensor (BMF 214K-PS-C-2A-SA95-S4-00,3)

High-Precision Position Detection for Short-Stroke Pneumatic Cylinders

The Balluff BMF00A4 is a premium, ultra-compact magnetic field cylinder sensor engineered specifically for flush installation in industrial machinery. Designed to slide seamlessly into standard C-slots, this low-profile sensor provides non-contact, wear-free position detection of pneumatic cylinder pistons.

Featuring an optimized response path, the BMF00A4 is the industry-standard choice for short-stroke actuators, automated grippers, and compact industrial machinery components from top brands like SMC, Bimba, and Schunk.

Key Features & Benefits

• Optimized for Short-Stroke Cylinders: Designed with a refined sensing field to ensure reliable switching even on rapid, short-travel pneumatic applications.

  Balluff

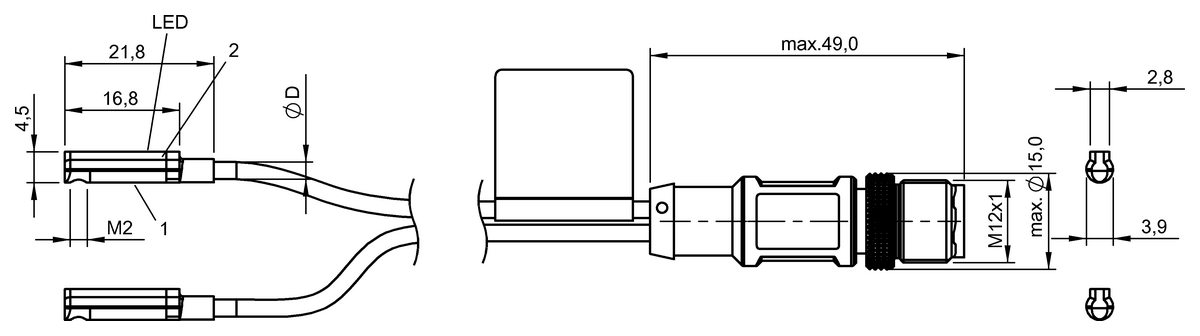

• Flush C-Slot Mounting: Drops entirely into the cylinder slot ($16.8\times 2.9\times 4.5\text{ mm}$ footprint), protecting the sensor body from mechanical damage.

  Balluff



• Robust M12 Pigtail Connection: Combines a flexible 0.3-meter PUR cable jacket with an industry-standard 4-pin M12 male connector for effortless plug-and-play setup.

  Balluff



• Industrial Grade Durability: Encased in a rugged PA 12 (Polyamide) housing with an IP67 environmental rating, offering complete protection against dust and liquid splash.

  Livingston & Haven Express Store



Technical Specifications
