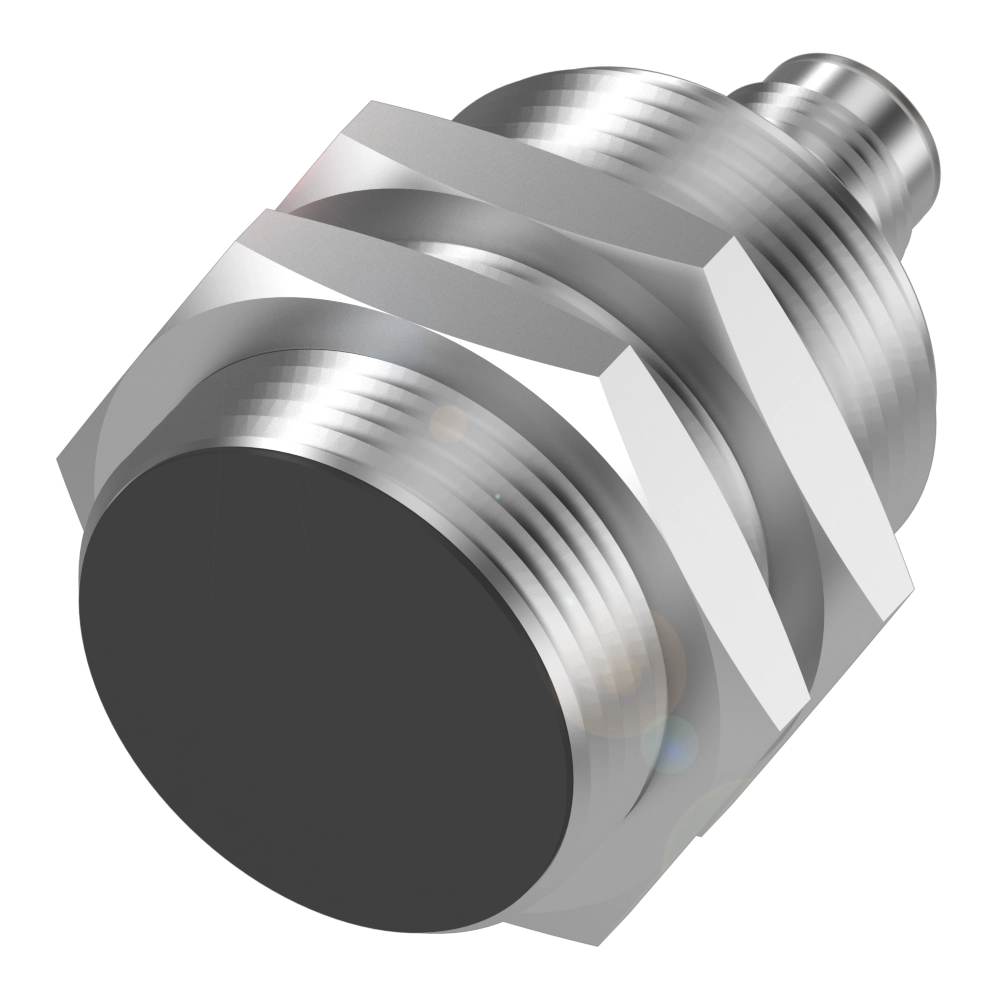

Balluff - BES02F0 Inductive Proximity Sensor (BES 515-327-E5-T-S4)

High-Temperature, Washdown-Resistant M30 Sensor for Extreme Environments

The Balluff BES02F0 is a premium, heavy-duty inductive proximity sensor engineered to deliver unflinching metal detection under extreme operational stress. Featuring a rugged, threaded M30 stainless steel barrel, this high-performance sensor is custom-built for applications that completely destroy standard industrial electronics.

What sets the BES02F0 apart is its phenomenal survival envelope. With an expanded operating temperature range spanning from -40 °C up to 105 °C (-40 °F to 221 °F) and dual IP68 / IP69K certification, it is completely immune to thermal shock, high-pressure hot water washdowns, and aggressive chemical sterilizers. It is the definitive choice for food and beverage processing, industrial bakeries, automotive paint booths, and heavy steel mill machinery.

Key Features & Benefits

• Extreme Temperature Resilience (-40°C to 105°C): Engineered with high-grade internal components that maintain switching accuracy through freezing basements or hot production ovens.
• IP68 & IP69K Washdown Certified: Rated to withstand high-pressure, close-range steam jets and continuous fluid immersion, making it completely washdown-proof.
• Rugged 1.4571 Stainless Steel Body: High-grade stainless steel housing provides excellent resistance against corrosive chemicals, cleaning agents, and aggressive industrial environments.
• 10 mm Flush Sensing Range: Designed for seamless flush-mount installation, level with surrounding metal plates to prevent physical damage while maintaining an extended 10 mm sensing window.
• Standard A-Coded M12 Connection: Built with a rugged, integrated 4-pin M12 male connector head for quick-disconnect cable swaps during routine machine washdowns.
• Technical Specifications
