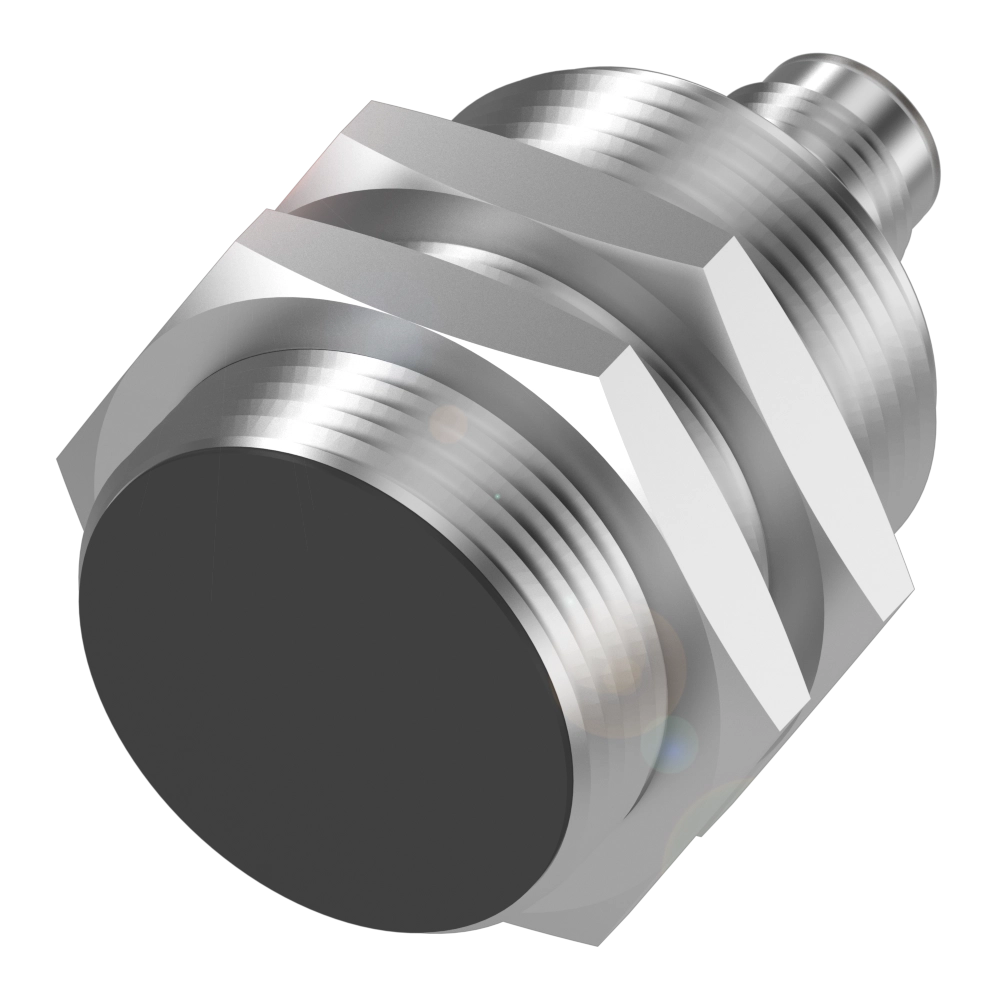

Balluff - BES027L Inductive Proximity Sensor (BES M30MI-PSC15B-S04G)

Heavy-Duty M30 Cylindrical Sensor for Long-Range Flush Metal Detection

The Balluff BES027L is a rugged, large-diameter inductive proximity sensor built to withstand heavy industrial environments. Part of Balluff's reliable Global series, this sensor features a robust, threaded M30 brass barrel with a nickel-free coating, providing an outstanding balance of mechanical strength and reliable metal target tracking.

Designed for flush installation, the BES027L mounts completely level with surrounding metal surfaces, keeping the sensor face protected from impact damage. Despite its shielded profile, it delivers an impressive, extended 15 mm operating distance, making it ideal for monitoring large machine parts, heavy conveyancers, steel mill equipment, and automotive assembly fixtures.

Key Features & Benefits

• Extended 15 mm Operating Range: Long-range flush sensing allows the sensor to be positioned farther back from moving parts, substantially lowering the risk of accidental collision damage.
• Compact, Short-Housing Design: With a short overall length of 41 mm, this M30 sensor provides a large sensing face and rugged construction while easily fitting into shallow mounting zones.
• Nickel-Free Coated Brass Body: Engineered to meet modern environmental compliance regulations while offering excellent immunity to mechanical vibrations and everyday industrial wear.
• IP68 Submersible-Grade Protection: Sealed completely against fine dust and continuous exposure to high-pressure fluids, ensuring continuous operation amidst cutting oils, coolants, and moisture washdowns.
• Standard M12 Quick Disconnect: Equipped with an integrated 3-pin A-coded M12 male connection head for rapid, drop-in cable replacements that slash production downtime.

Technical Specifications
