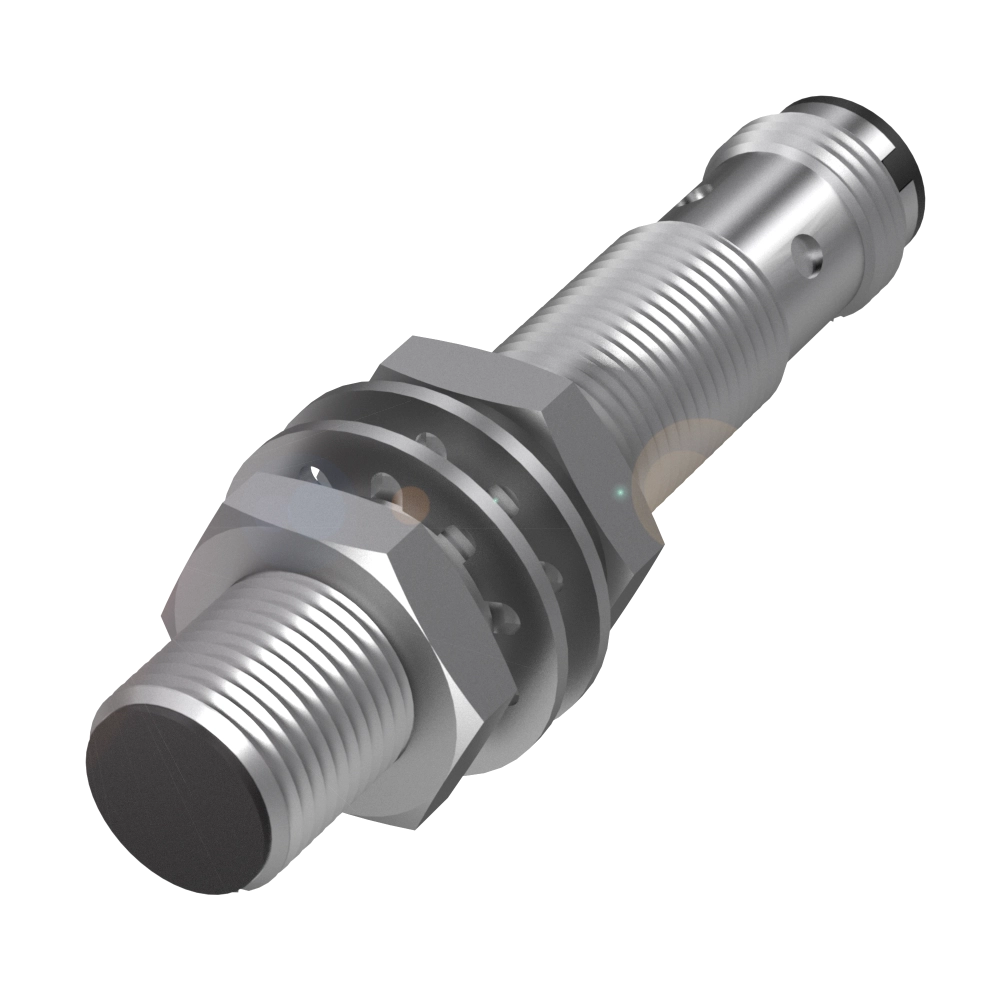

Balluff - BES0068 Inductive Proximity Sensor (BES M12MI-PSC40B-S04G)

High-Frequency M12 Cylindrical Sensor for Flush Metal Detection

The Balluff BES0068 is a standard-setting, highly durable inductive proximity sensor built for dependable metal target tracking in modern industrial automation. Featuring a threaded M12 nickel-free coated brass barrel, this Global series sensor is optimized for compact machinery configurations where repeatable precision and mechanical resilience are critical.

Engineered for flush mounting, the sensor body installs entirely level with its metal mounting surface. This flush configuration shields the sensing face from side impacts and mechanical stress, providing an optimal 4 mm operating distance for factory automation, robotic indexing, and conveyor synchronization.

Key Features & Benefits

• Seamless Flush Installation: Mounts flush into metal housing blocks, preserving smooth surface lines and preventing mechanical snags or target collisions.


• Rapid 2,500 Hz Switching Frequency: Fast response times make it a go-to choice for high-speed pulse generation, rotary cam tracking, and high-cadence assembly systems.


• Nickel-Free Coated Brass Housing: Offers robust chemical and mechanical resistance while remaining environmentally friendly and compliant with strict industrial manufacturing standards.


• IP68 Ingress Protection: Completely dust-tight and resistant to continuous immersion in water, guaranteeing reliable long-term switching near machine coolants and washdown spray.


• Standard M12 Quick Disconnect: Integrated 3-pin M12 male connector head facilitates clean, rapid cable swaps to drastically reduce maintenance downtime.

Technical Specifications
