BALL VALVE 3-WAY - F.F.F.

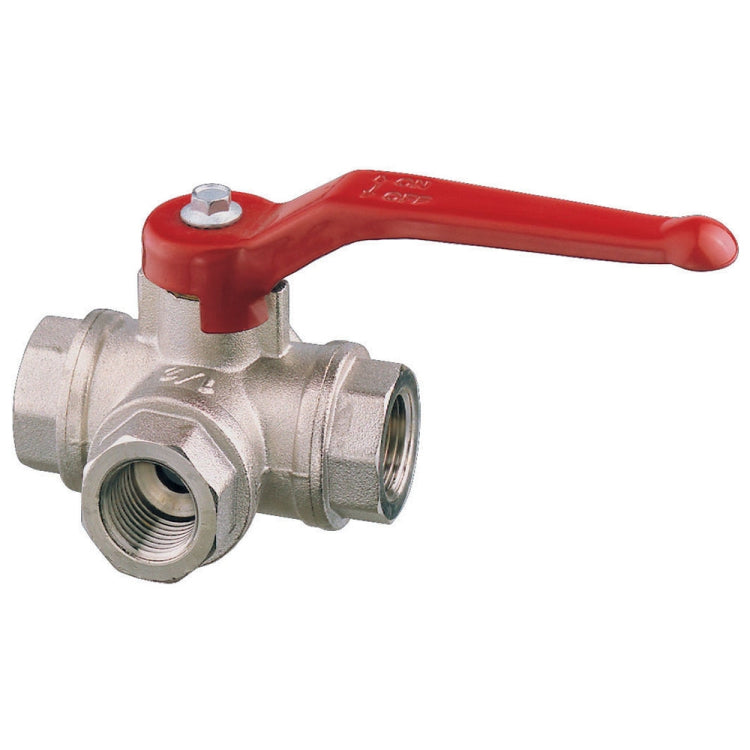

The Nickel-Plated Brass 3-Way T Ball Valve (F-F-F) is a versatile flow-control solution engineered for systems that require directional flow switching, distribution, or mixing between three ports. Constructed from durable nickel-plated brass with three female (F) threaded connections, this valve combines corrosion resistance with reliable mechanical performance for a wide range of plumbing, marine, and industrial applications.

🔧 Key Features

Three-way T configuration — allows flow to be directed from one inlet to either of two outlets or to combine two inlets into one outlet
Female-female-female threaded ends (F-F-F) — quick and secure installation into existing piping systems
Nickel-plated brass body — enhanced corrosion resistance and surface durability compared to plain brass
Quarter-turn ball operation — rapid and intuitive flow control with a simple 90° handle rotation
Compact, low-maintenance design — smooth operation with minimal leakage and long service life

⚙️ How It Works

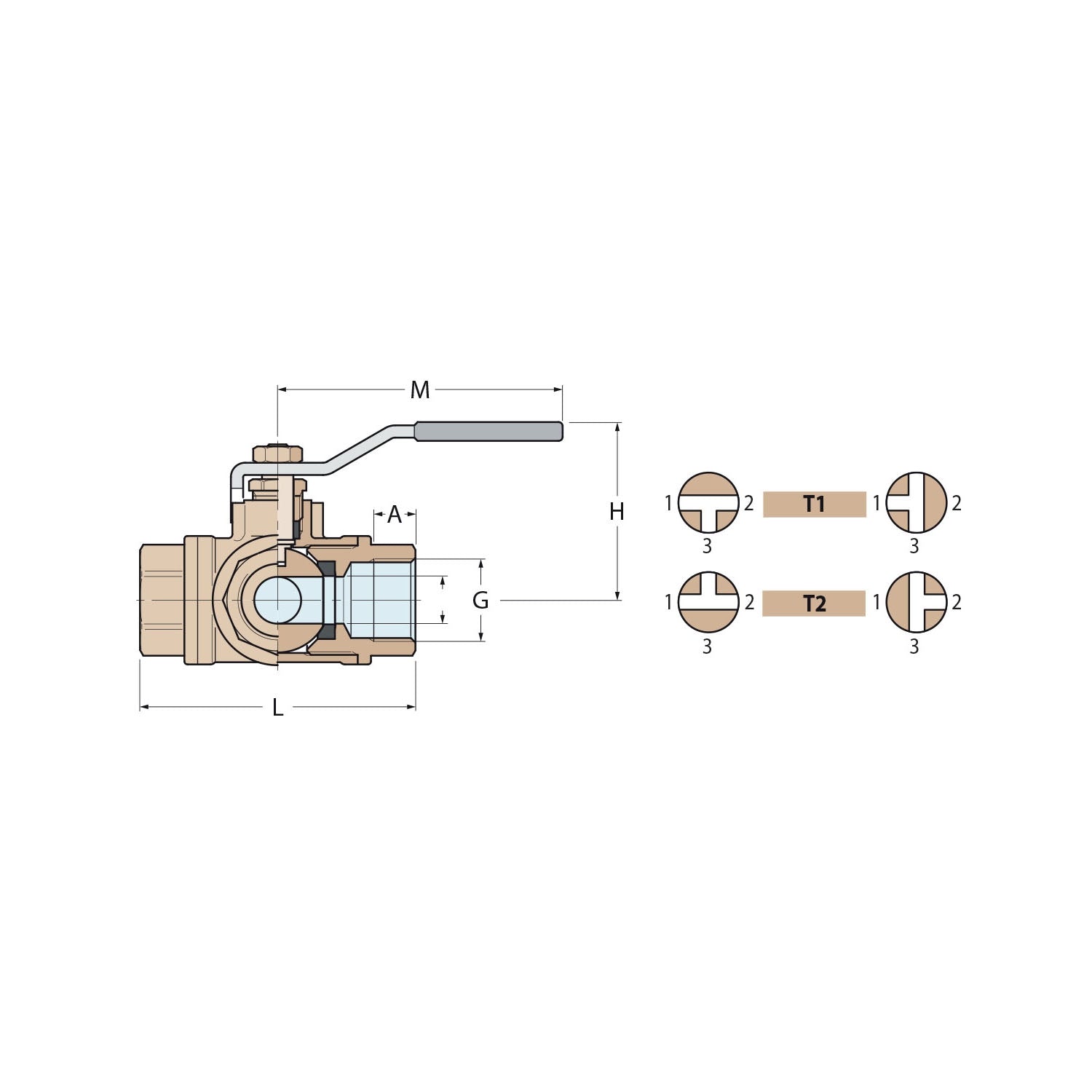

Inside the valve, a machined ball with a T-shaped passage rotates around its axis. Turning the handle positions the internal passage to connect different pairs of ports, enabling flow to be routed, shut-off, or blended as needed. This design gives you flexible control over fluid direction with minimal pressure loss.

⚓ Typical Applications

Routing fluid between multiple branches in pipe networks
Fire pump system
Switching flow between equipment circuits or pumps
Mixing or diverting flows in water, cooling, or utility systems
Use in marine plumbing, HVAC systems, industrial processes, or general plumbing systems

💡 Why Choose a 3-Way T Ball Valve?

A 3-way T ball valve offers flexible flow management with fewer fittings and simpler piping than equivalent multi-valve arrangements. Its nickel plating improves resistance to corrosion and surface wear — particularly useful in damp or marine environments — while the quarter-turn action ensures reliable and quick control when you need it most.
